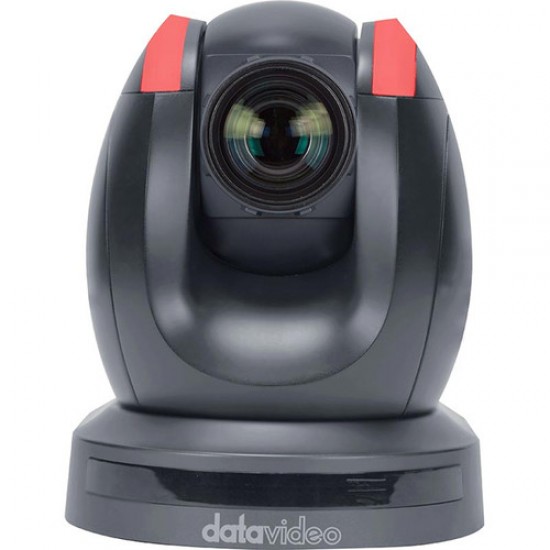

Datavideo PTC-200T – 4K PTZ HDBaseT Kamera

UHD PTZ Camera
•UHD Res.: 1/2.3" High Definition 8.93 M Pixels progressive CMOS sensor
•12x optical zoom (f = 3.9 mm to 46.8 mm)
•UHD (3,840 x 2,160, UHD): 2160p/29.97, 2160p/25 HD: 1080p/59.94,1080p/50, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50
•Real time olarak her karenin pozisyon koordinatları rapor edilir
•Video Output: 3G-SDI + HDMI aynı anda
•HDBaseT bağlantı

1/2.3" high-definition 8.93MP progressive CMOS sensor
12x optical zoom (f= 3.9 to 46.8mm)HD: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
DNR (Digital Noise Reduction) function to reduce the noise and enable clearer image under low light conditions
Position coordinates report in real-time per frame
Video Output: 3G-SDI + HDMI synchronously
Tally LED design (IR controller / RS-422 / DVIP operation)
Supports VISCA protocol keyboard
Supports DVIP control protocol
Transmits video, audio, DVIP Ethernet control, RS-422/232 and PoE to HBT-11 receiver box on a single CAT5e/6/6a/7 cable
Transmits up to 4Kx2K video from PTZ camera to HBT-11 receiver box
Video transmission between PTZ camera and HBT-11 receiver box is extended up to 328'
