- Stock: Out Of Stock
- Model: TLC-1000-U3-10
TLC-1000-U3-10 is ideally used for video conferencing in the middle and small meeting room. It is equipped with Panasonic’s advanced sensor, 10x optical zoom lens, to output crystal clear images with realistic color, even in low light or high contrast of brightness and darkness environment.
It works with any of your favorite conferencing software, totally plug and play, use-friendly.
| Zoom | 10x |
|---|---|
| View Angle | 62.5 degree |
| Video Interface | USB3.0 |
| Video Resolution | 1080p30 |
| Color | black, grey, silver |
| Warranty | 2 years |
Camera
Sensor: 1/2.8 inch 5MP high-quality HD CMOS sensor
Video System:
USB3.0：1920*1080p30/25, 1280*720p60/50/30/25, 1024*768p30, 800*600p30, 1024*576p30, 960*540p30, 576*448p30, 768*448p30
Video Format: YUY2
Lens Zoom: 10x optical zoom, 12x digital zoom
Focal length: f＝4.7(wide)～47mm(Tele)
View Angle: 6.43°（wide）~ 62.5°（Tele）
SNR: >50dB
Noise Reduction: 2D/3D
Minimum LUX: 0.1 LUX
White Balance: Auto/Manual/Indoor/Outdoor/Push/Sodium/Fluorescent
Focus: Auto / Manual
Iris: Auto / Manual
Electronic Shutter: Auto / Manual
BLC: Supported
Mechanism
Pan Rotation Angle: -170° ~ +170°
Tilt Rotation Angle: -30° ~ +90°
Pan Rotation Speed: 0°~120°/s
Tilt Rotation Speed: 0°~80°/s
Preset: 128 presets via RS232, 10 presets via remote controller
Control: RS232/RS485/USB/Remote Controller
Video Port: USB3.0
Input voltage: DC12V
Camera Dimension: 148mm×132mm×161mm
Package Dimension: 28x24x24cm

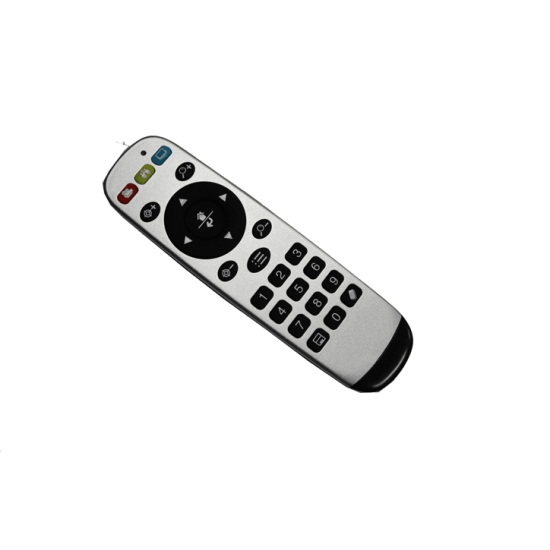

Package Content: Camera, Remote Controller, RS232 cable, USB3.0 cable, Power Supply
