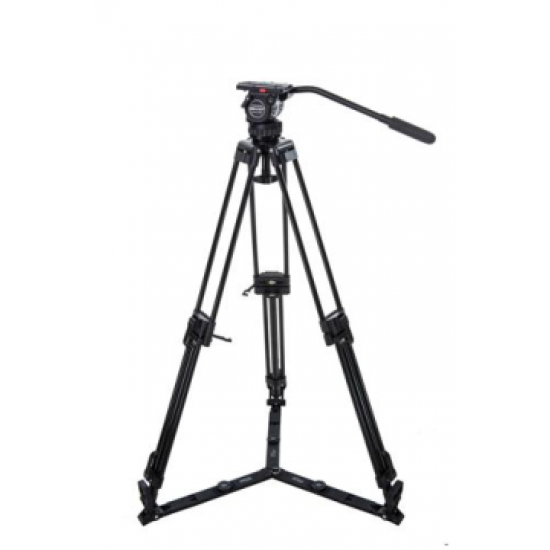

SECCED REACH PLUS 0 (AL) KIT

SPECIFICATION

Reach Plus 0 Kit:

Weight: 6.2kg

Max Payload: 6.9kg

Height Range: 55-162mm

Bowl Diameter: 75 mm

Transport Length: 86cm

Head:

Weight : 2.5kg

Counterbalance: 0-7 steps

Sliding range-plate: 110mm

Grades of tilt drag: 0-3

Grades of pan drag: 0-3

Tilt range: -75/+90

Tripod fitting:  75mm

Payload

C.O.G (mm) Min Payload (kg)   Max Payload (kg)

50               0.00                          6.90

75               0.00                          5.60

   100              0.00                          4.71

   125              0.00                      4.13

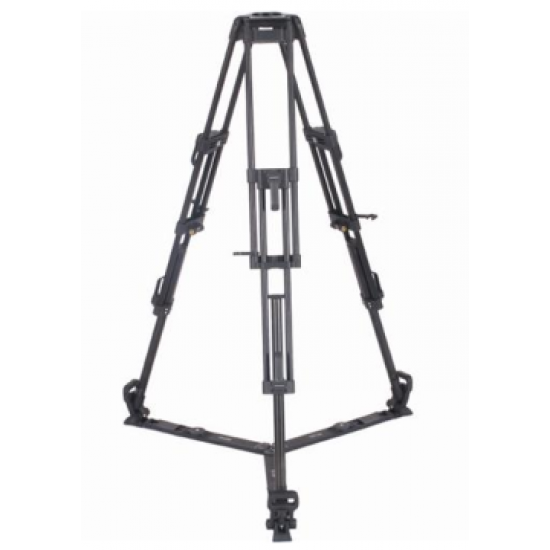

Tripod:

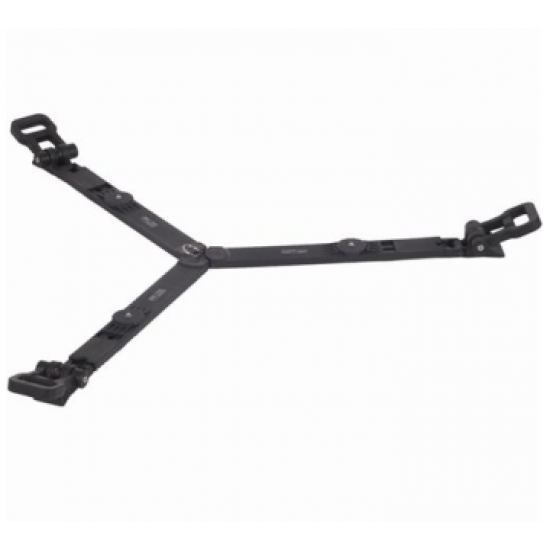

Weight (With Ground Spreader): 3.7kg

Max. Payload: 20kg

Height Range (With Ground Spreader): 40-147cm

Height Range (With Off Ground Spreader): 49-142cm

Bowl Size: 75mm

Transport Length: 71cm

Extension: Double

Material: Aluminium
